Road Safety Reflector Glass Cat Eye Customized for Customer Requirements

Ask Lasest Price
Brand Name :	Safebuild
Model Number :	*10050**
Supply Ability :	12000 Ton/Tons per Month
Price :	$1.50/pieces 20-199 pieces

Add to Cart

Product Details
Company Profile

Road Safety Reflector Glass Cat Eye Customized for Customer Requirements

Product Overview

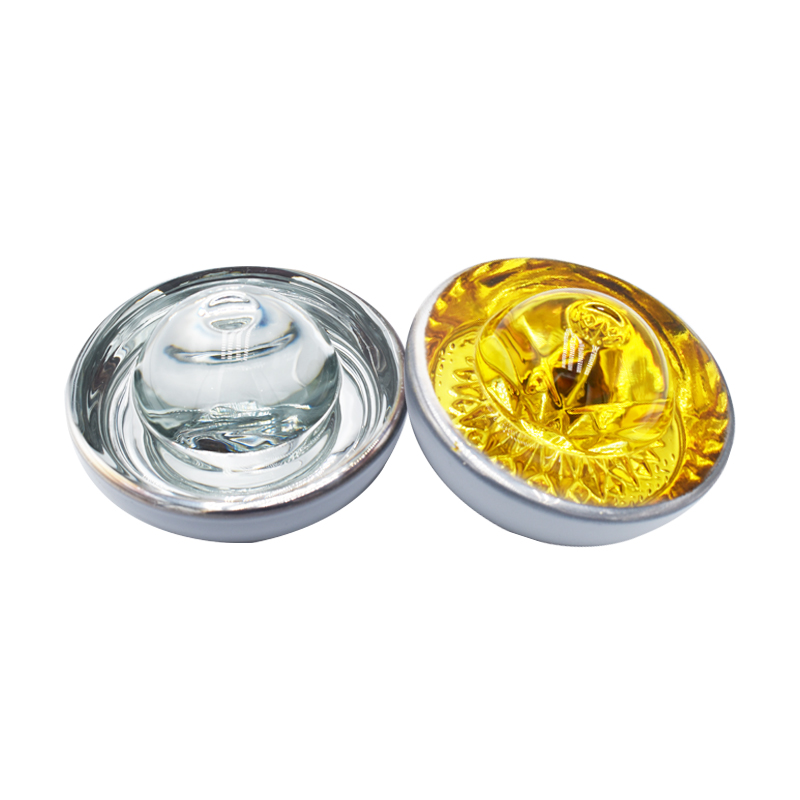

GLASS ROAD STUD

Road studs are traffic reflectors for the highway, they are also known as raised road signs.
They are a kind of traffic safety product that is mainly installed in the middle of the road marking line or the middle of the
double yellow line to remind the driver to drive according to the lane through its reverse reflection performance. The
specifications of the spike are generally 136mm*50mm.
There are a variety of reflectors, studs, reflective beads, LED light, reflective film and so on.
According to the material they are made with they can be divided into:
1. Cast aluminum road studs;
2. Plastic road studs;
3. Glass road studs;
5. Solar road studs;
Solar studs are widely used for controlling traffic flow with a wide number of different applications. There are a number of well known and widely accepted colors, with lights in particular orientations to make the message to a driver clear and univocal, thereby improving the traffic flow of the road and enhancing safety aspects. The new designed and patent solar stud could stand the pressure of 30 Tons allowing cars to drive on the solar led marker lights directly.

Road Safety Reflector Glass Cat Eye Customized for Customer Requirements

FEATURES AT A GLANCE

Size: 136 * 50 mm
Technical parameters:
1. Energy storage element: Rechargeable battery 1.2V/ 600mAh Ni-MH high-temperature battery charge and discharge times >1000
times, the capacity is not easy to drop, the battery life is three years;
2. Solar cell: (monocrystalline silicon) 2.5V/ 120mAh

3. Working time: Under standard light intensity, it can work continuously for more than 72 hours for 8 hours at a time;

4. Display mode: flashing (default: 2Hz, customizable), or straight bright, one side or two sides;

5. Display device:Φ5 ultra bright anti-fog LED, LED lamp bead color can be customized

6. Display colors: red, yellow, white, blue and green, etc. Visual distance: greater than 1000M;

7. Material: cast aluminum alloy shell + bulletproof PC

8. Starting light intensity: positive light is less than 500Lux;

9. Working environment: -20℃~ 70℃;

10. The installation is embedded/ buried lamp.

Cast aluminum alloy shell refers to the internal
filling material which the shell it is made of. The cost of such a spike is lower than all cast aluminum, but at the same time the
-It's compressive strength is not so high. It is generally known as cast aluminum spike or cast aluminum filled road stud.
-The stud formed has a carrying capacity of more than 20 tons.
-When charged continuous flicker for 200H or constant brightness for 40H.
-It has strong waterproof ability, solar panels, electronic components and LED through special technology sealed in the shell,
-long-term water road can be used normally.
-Efficient import of monocrystalline silicon solar panels, the conversion rate can be as high as 17%.
-Service life: 3-5 years.
-It is easy to install by embedding.

PRODUCT SPECIFICATIONS

Item	Data
Solar cell	(monocrystalline silicon) 2.5V/ 120mAh
Working time	72 hours for 8 hours at a time;
Energy storage element	Rechargeable battery 1.2V/ 600mAh
Material	cast aluminum alloy shell + bulletproof PC
Working environment	-20℃ ~ 70℃;
Starting light intensity	positive light is less than 500Lux;
Display colors	red, yellow, white, blue and green
Visual distance	greater than 1000m

PRODUCT CONFIGURATION

Cast Aluminum Alloy Shell

Bulletproof PC

Variety Of Colours

Manufacturing Technique
